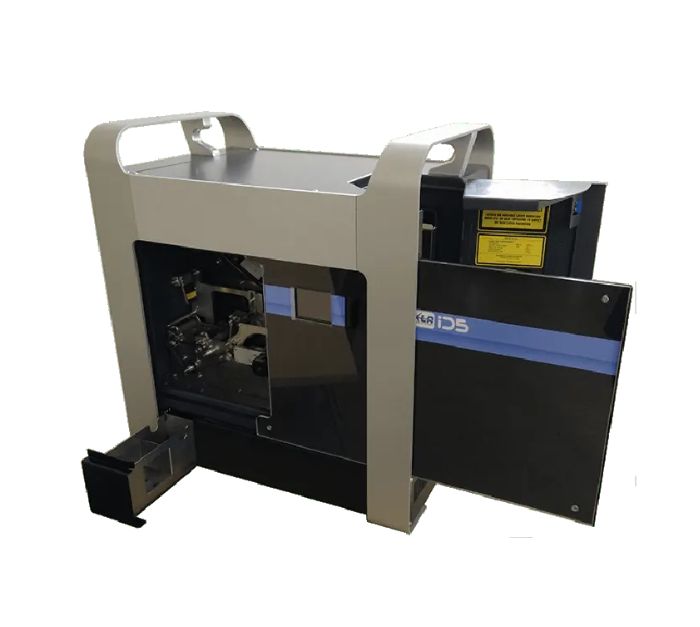

IXLA ID5 – High-Performance Laser Engraving System
High-Volume Secure Card Personalization
The IXLA ID5 is a robust desktop laser engraving system designed for medium to high-volume ID card production. Offered in both High Definition (HD) and High Performance (HP) models, it excels in centralized or decentralized personalization environments.
The ID5 supports CLI and MLI laser engraving, smart card encoding, and features full web-based user control for enhanced monitoring and reporting. Its jam-free transport mechanism and flat engraving system ensure maximum precision and reliability, ideal for national ID programs, driver’s licenses, and banking cards.
- High Definition (HD) and High Performance (HP) laser options

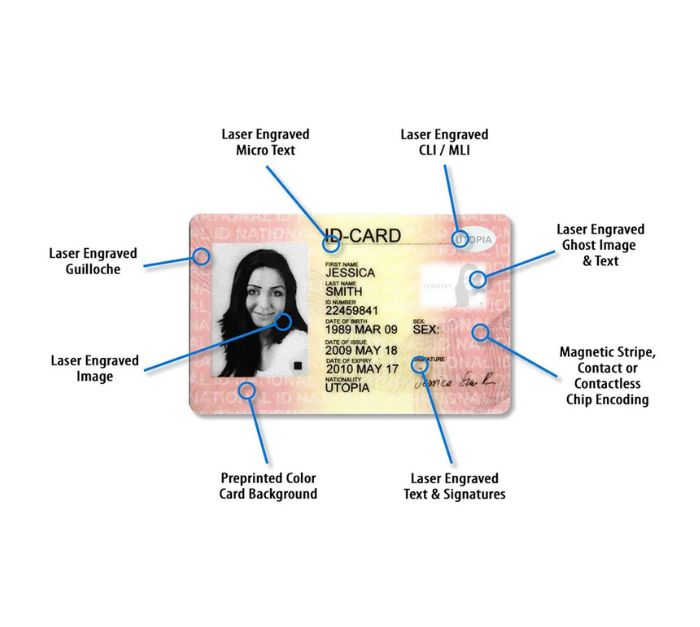

- Supports CLI and MLI engraving with exceptional accuracy
- Optional smart card and magnetic stripe encoding capabilities
- Web-based user interface with full system logs and control
Technical Specifications
| Feature |
Specification |
| Laser Type |
Fiber Laser (HD or HP) |
| Engraving Resolution |
Up to 1200 dpi (HD model) |
| Card Throughput |
Up to 800 cards/hour (HP model) |
| Supported Cards |
PVC, PET-G, Polycarbonate (ISO/IEC 7810) |
| Encoding Options |
Contact/Contactless Smart Cards, Magnetic Stripe |
| Connectivity |
Ethernet (LAN), USB, Web Interface |
| Software Interface |
Web-based GUI with job control & reporting |
| Dimensions (W × D × H) |
650 × 450 × 330 mm |
| Weight |
Approx. 45 kg |
| Operating Temperature |
15°C – 30°C |
Choose the IXLA ID5 for unmatched engraving quality, system flexibility, and maximum data security in your high-volume card personalization workflow.
